Mermaid Diagram Macro

How to Use

Type /Mermaid in the Confluence editor

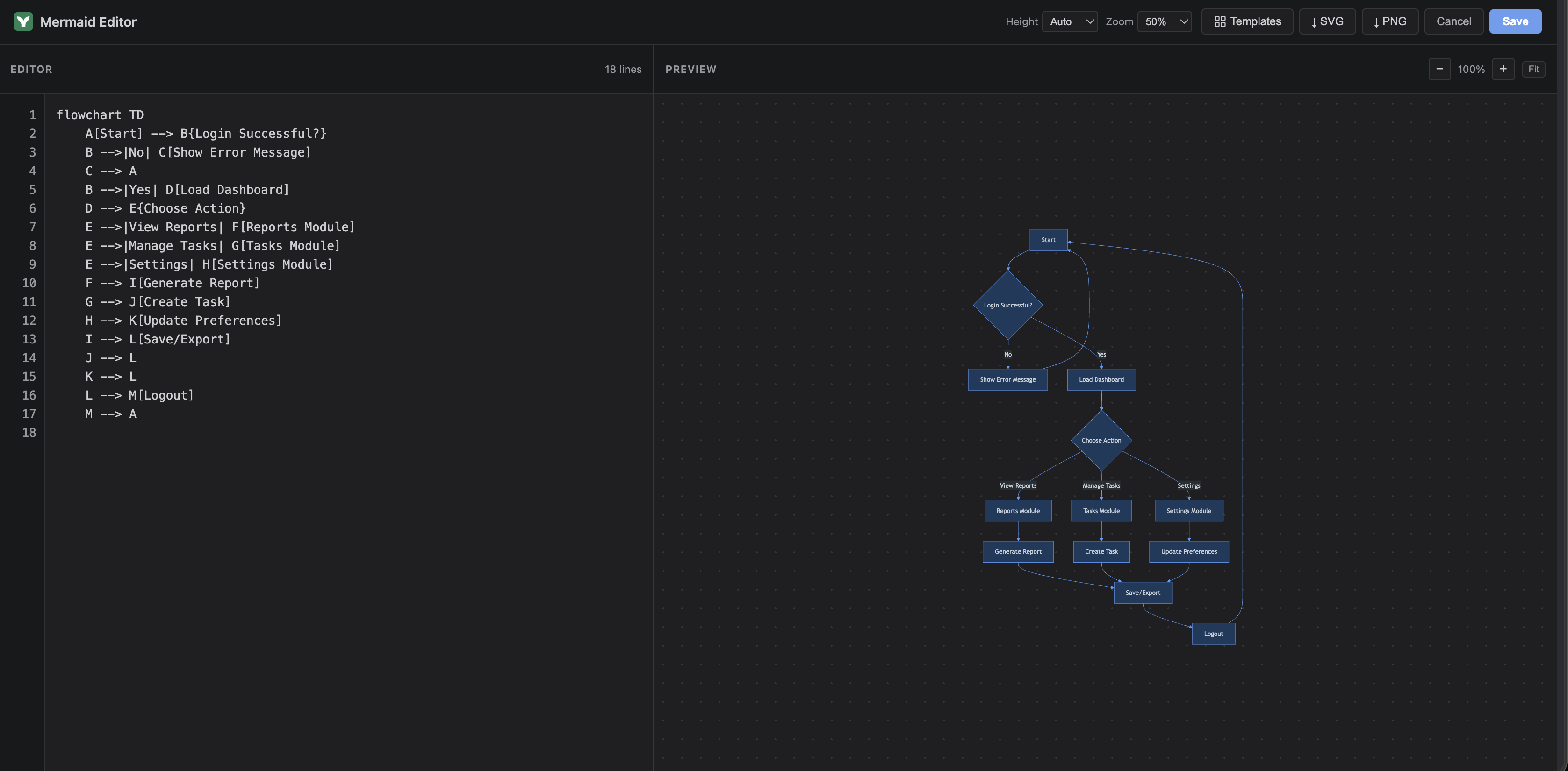

A fullscreen editor opens with a code panel (left) and live preview (right)
Write your Mermaid syntax (e.g., graph TD; A-->B; B-->C;)
See the diagram update in real-time as you type

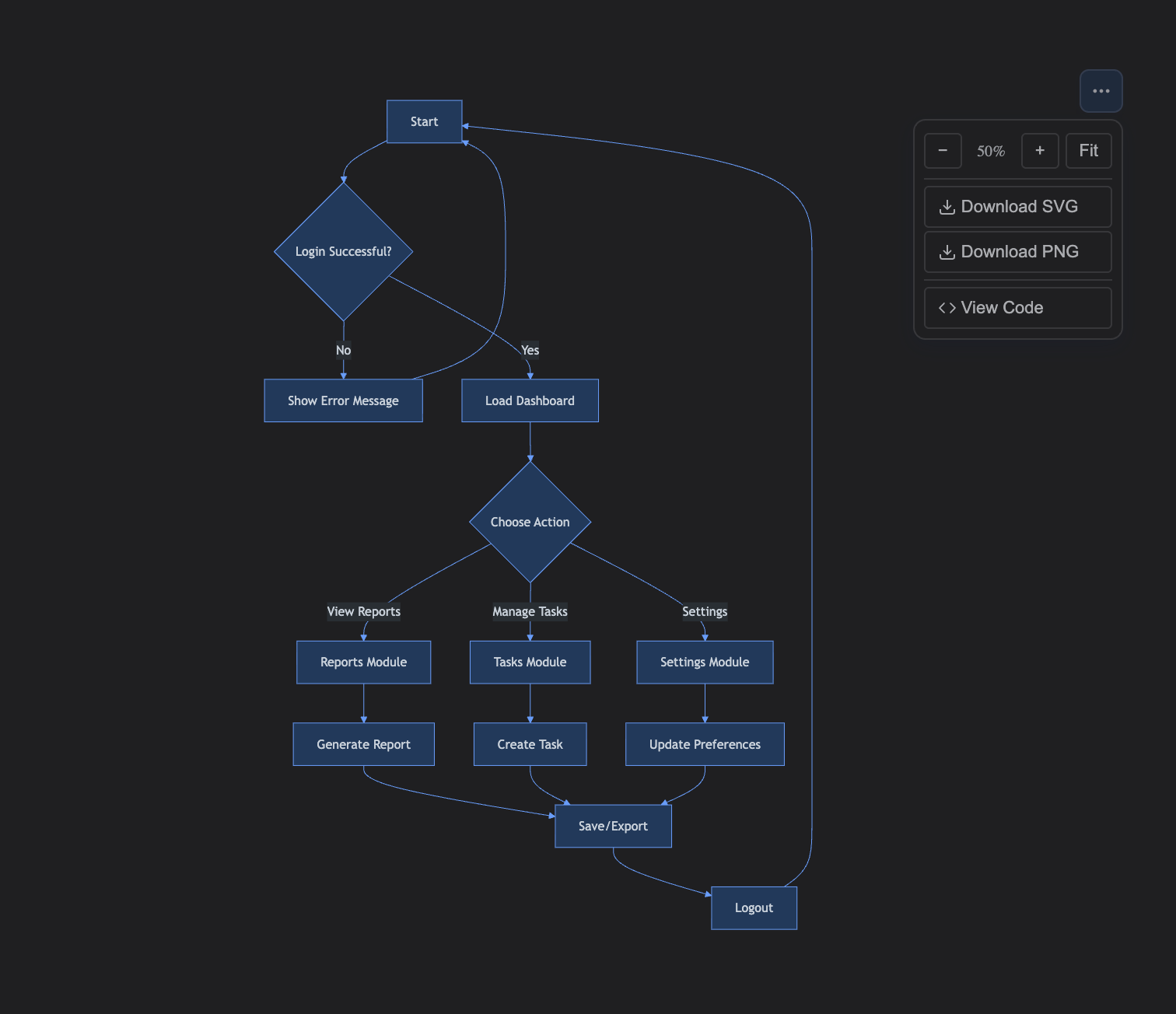

Click Save — the diagram renders on the published page

Sample Script

flowchart TD
    A[Start] --> B{Login Successful?}
    B -->|No| C[Show Error Message]
    C --> A
    B -->|Yes| D[Load Dashboard]
    D --> E{Choose Action}
    E -->|View Reports| F[Reports Module]
    E -->|Manage Tasks| G[Tasks Module]
    E -->|Settings| H[Settings Module]
    F --> I[Generate Report]
    G --> J[Create Task]
    H --> K[Update Preferences]
    I --> L[Save/Export]
    J --> L
    K --> L
    L --> M[Logout]
    M --> A

Supported Diagram Types

Flowcharts
Sequence Diagrams
Gantt Charts
Class Diagrams
State Diagrams
Pie Charts
ER Diagrams
Git Graphs

Pro Features PRO

The following features are available exclusively in the Pro version:

Export as SVG / PNG

Download your diagrams as high-resolution SVG or 2× PNG files. Available both in the editor toolbar and on the published page (hover to reveal export buttons).

Zoom Controls

Interactive zoom on the published diagram — use the +/− buttons or Ctrl/⌘ + Scroll to zoom in/out. Set a default zoom level (50%–200%) in the editor that persists on the page.

Code Split View & Copy

On the published page, click the </> Code button to open a split panel showing the raw Mermaid source with a one-click copy button.

Diagram Templates

8 built-in templates (Flowchart, Sequence, Class, State, Gantt, Pie, ER, Git Graph) — insert with one click from the editor toolbar.

Configurable Container Height

Set the minimum container height (Auto, 100px–600px) to control how the diagram fits on the page. Default is Auto (fits content exactly).

Dark Mode Support

Diagrams automatically adapt to Confluence's light/dark theme — text, lines, and backgrounds adjust for readability in both modes.

Using via MCP (Model Context Protocol)

Download .md

Programmatically insert or update Mermaid diagrams via MCP using the Confluence storage format.

Macro Config Schema

Field	Type	Description	Default
code	string	The Mermaid syntax source code	''
minHeight	string	'auto' or pixel value like '300'	'auto'
defaultZoom	string	Zoom percentage: '50' to '200'	'100'

Storage Format (XHTML)

<ac:structured-macro ac:name="mermaid-diagram" ac:schema-version="1" ac:macro-id="unique-id">
  <ac:parameter ac:name="code">graph TD
  A[Start] --&gt; B{Decision}
  B --&gt;|Yes| C[Done]
  B --&gt;|No| D[Retry]</ac:parameter>
  <ac:parameter ac:name="minHeight">auto</ac:parameter>
  <ac:parameter ac:name="defaultZoom">100</ac:parameter>
</ac:structured-macro>

Important: HTML-encode special characters (> → >, < → <, & → &).

MCP Tool Definition

{
  "name": "insert_mermaid_diagram",
  "description": "Insert a Mermaid diagram into a Confluence page",
  "inputSchema": {
    "type": "object",
    "properties": {
      "pageId": { "type": "string", "description": "The Confluence page ID" },
      "code": { "type": "string", "description": "Mermaid diagram syntax" },
      "minHeight": { "type": "string", "default": "auto" },
      "defaultZoom": { "type": "string", "default": "100" }
    },
    "required": ["pageId", "code"]
  }
}

Implementation Pattern

async function insertMermaidDiagram({ pageId, code, minHeight = 'auto', defaultZoom = '100' }) {
  const page = await confluenceApi.get(`/wiki/api/v2/pages/${pageId}?body-format=storage`);

  const encodedCode = code
    .replace(/&/g, '&amp;')
    .replace(/</g, '&lt;')
    .replace(/>/g, '&gt;');

  const macroMarkup = `
<ac:structured-macro ac:name="mermaid-diagram" ac:schema-version="1">
  <ac:parameter ac:name="code">${encodedCode}</ac:parameter>
  <ac:parameter ac:name="minHeight">${minHeight}</ac:parameter>
  <ac:parameter ac:name="defaultZoom">${defaultZoom}</ac:parameter>
</ac:structured-macro>`;

  const newBody = page.body.storage.value + macroMarkup;
  await confluenceApi.put(`/wiki/api/v2/pages/${pageId}`, {
    version: { number: page.version.number + 1 },
    body: { storage: { value: newBody, representation: 'storage' } }
  });
}

Supported Diagram Types

graph TD/LR Flowcharts
sequenceDiagram Sequence
classDiagram Class
stateDiagram-v2 State
erDiagram ER
gantt Gantt
pie Pie
gitGraph Git
mindmap Mind maps
timeline Timelines

Tips

Validate — Call mermaid.parse(code) before saving
Escape — Encode < > & " in the code field
Newlines — Use actual newlines, not \n literals
Update — Find ac:name="mermaid-diagram" block and replace code param
Prerequisite — Forge app must be installed on the site

Technical Details

Storage	Macro config (inline with page)
External Service	None — renders client-side
Editor	Fullscreen split-pane with line numbers, Tab support, debounced preview
Export	SVG & PNG (2× resolution) PRO
Zoom	Interactive (+/−/Fit, Ctrl+Scroll) with configurable default PRO
Code View	Split panel with copy button on published page PRO
Templates	8 built-in (Flowchart, Sequence, Class, State, Gantt, Pie, ER, Git) PRO
Theme	Auto light/dark mode adaptation PRO
Availability	Basic editor in Lite; full features in Pro
